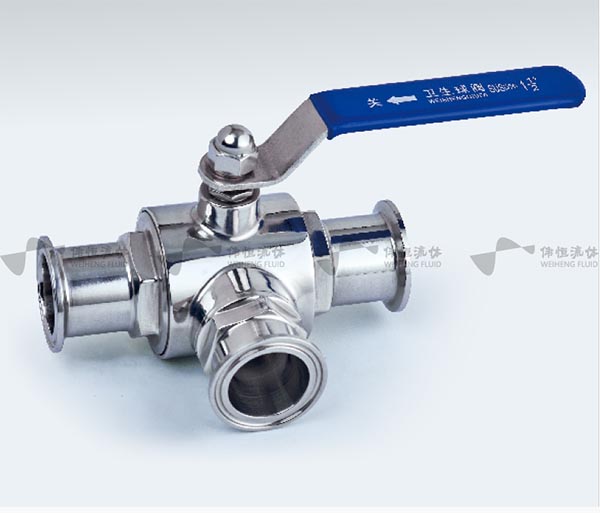

衛生級三通球閥
衛生級三通球閥
工作原理以應用 Working principle And Application

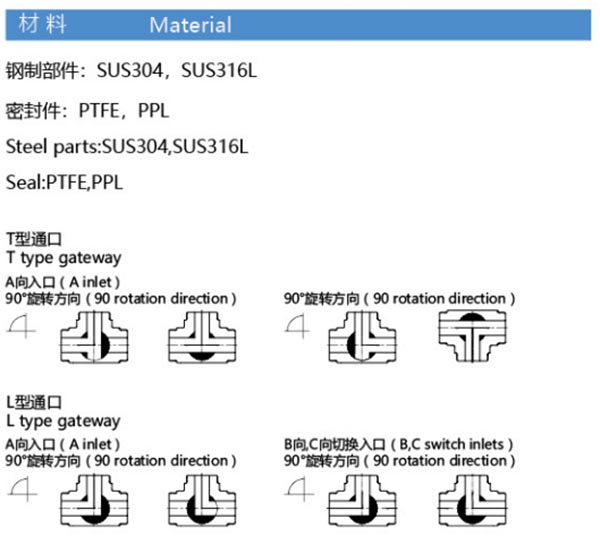

三通球閥流向分T型和L型，通過360°旋轉T型能使三條正交的管道相互聯通或切斷任意一條管道的流向，起分流、合流作用，L型三通球閥只能連接相互正交的兩條管道，不能保持第三條管道的同時連通，只能起到分配作用。三通球閥主要用來做切斷、分配和改變介質的流動方向。
The three-way ball valve is divided into T-type and L-type. The
360-degree rotating T-type can make three orthogonal pipes communicate with each other or cut off the flow direction of any one of the pipes, and can split and merge. The L-type three-way ball valve can only be connected with each other. The two pipes handed in can not maintain the simultaneous connection of the third pipe, and can only play a role in distribution. The three-way ball valve is mainly used to cut, distribute and change the flow direction of the medium.
